The boiler

The boiler is the largest CFB-boiler (Circulating Fluidised-Bed Boiler) in the world and was supplied with an output of 550 MWth. The furnace of the boiler measures 8.5 metres x 24 metres and is 40 metres high. It was supplied by Kvaerner Pulping Oy.

The steam data are high (165 bar / 545°C) compared to the normal parameters for bio-fuel boilers and increase the efficiency of the plant. There are also re-heating and rotating air pre-heaters to provide high values while steam-cooled cyclones represent the latest technology.

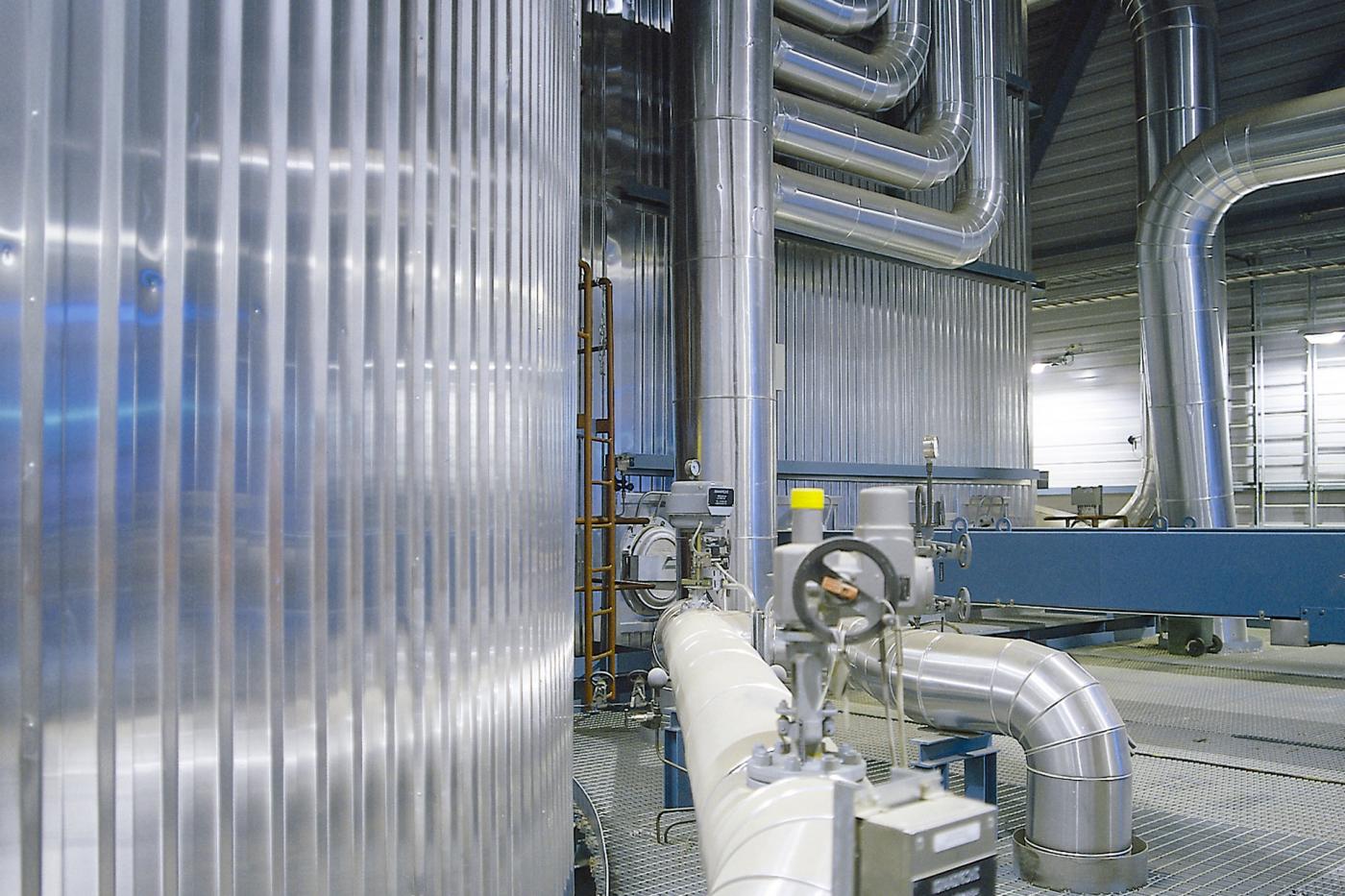

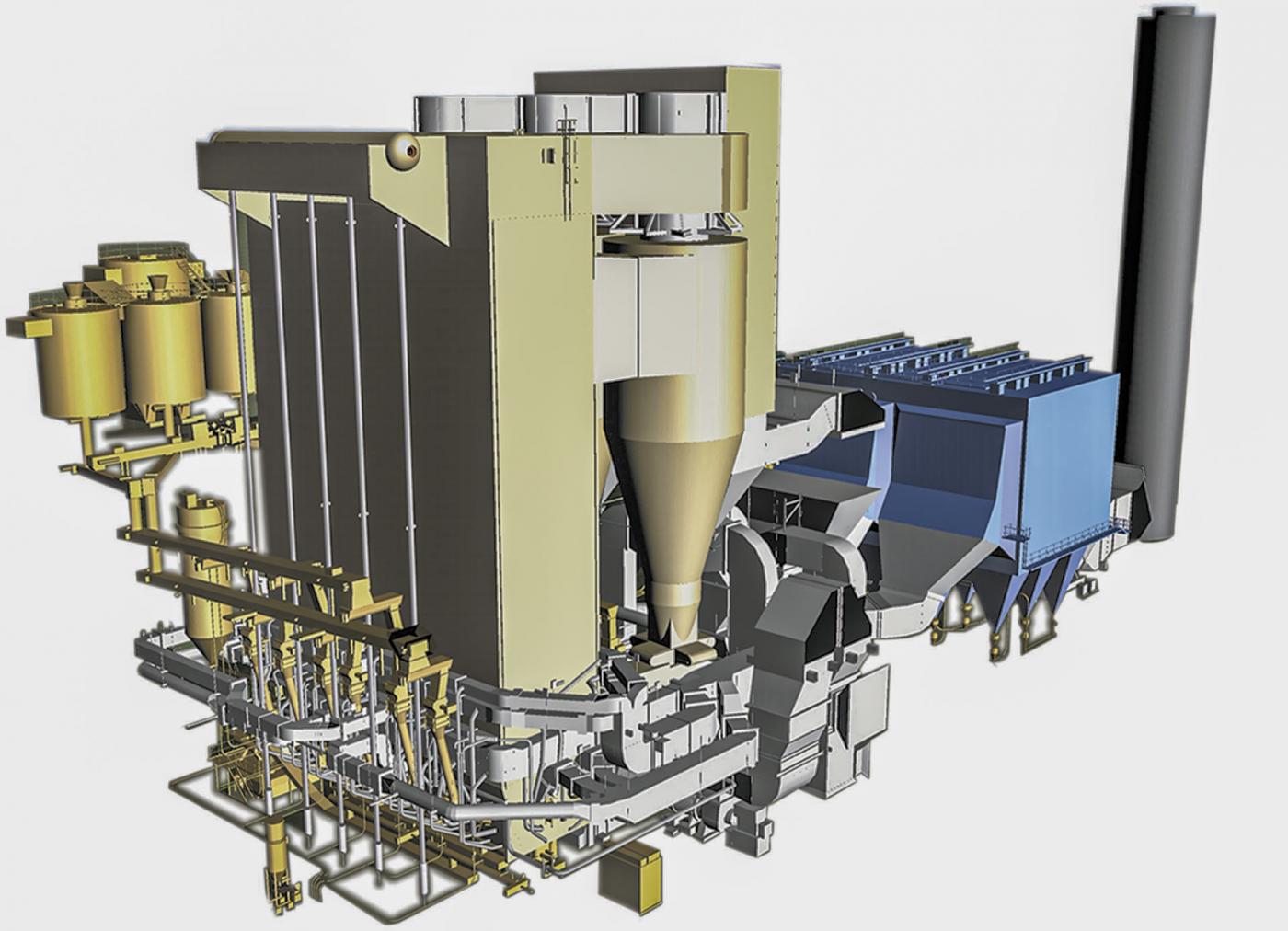

Panna - Kattila 01Panna - Kattila 02Panna - Kattila 03

Click on the thumbnails for a larger version.

Energy production

The power plant of Alholmens Kraft produce electricity, district heating and process steam. Read more here:

» Energy Production
